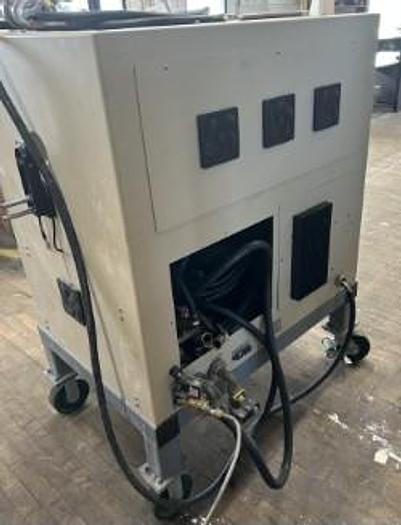

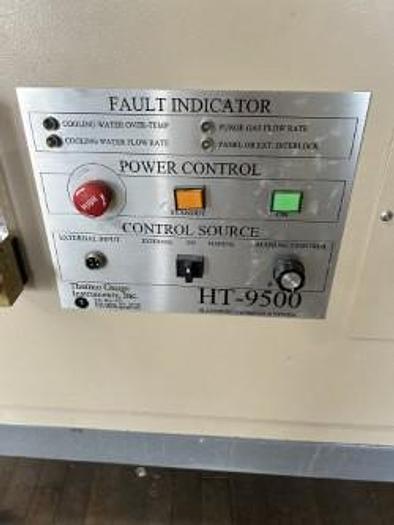

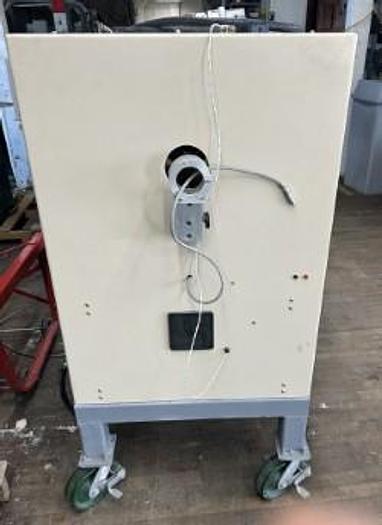

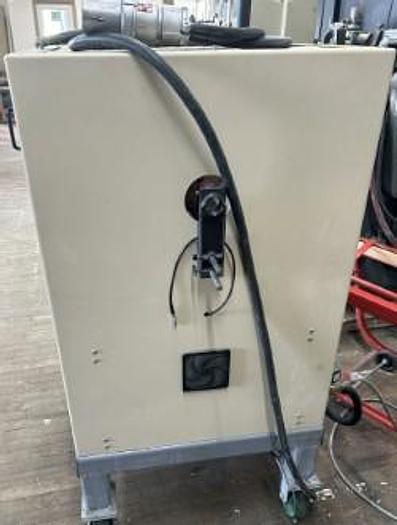

Thermo Gauge Instruments HT-9500 BlackBody Complete High Temp IR Calibration System

The Thermo Gauge model HT-9500 is a complete high temperature IR calibration system based on the Thermo Gauge proven graph ite tube design. The system includes a horizontal graphite tube cavity for high temperature source, optical pyrometer for tempera ture feedback, and digital temperature controller.

Temperature: 500 C to 3000 C (932 F to 5432 F)

Resolution: 0.1 C (0.1 F)

Heating Rate: 500 C per minute for black body

Cooling Time: Above 1000 C >100C per minute Below 1000 C > 25 C per minute

Stabilization Time: Typical 3 minutes, slower at low temperatures

Stability: 0.1 C

Dimensions: 40” wide x 28” deep x 38” tall

Weight: 800 lbs 363 kg

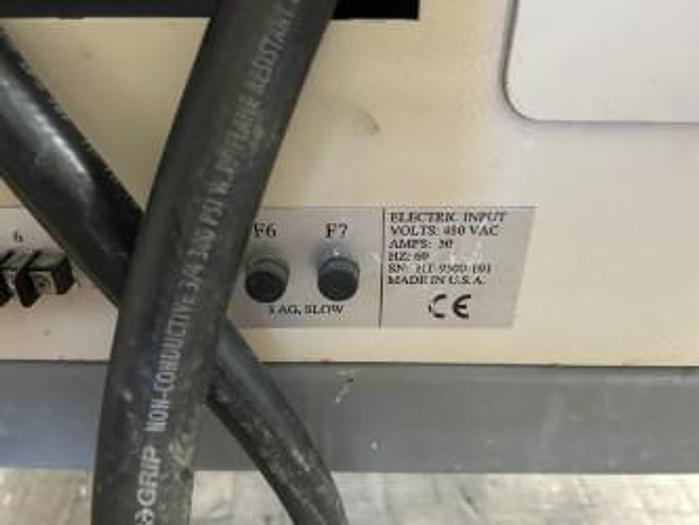

Power: 48 KVA

Cooling water: 5 - 8 GPM depending on cavity Typical 60 psi, Maximum 100 psi

Purge gas: Nitrogen or Argon, (not used for flat plate target)

NIST Traceable: Optical pyrometer or standard Gardon style heat flux gauge.

Shipping Dim.: 48” x 48” x 48” wooden crate with heat stamp for international shipment. Shipping Weight 1000 lbs 454 Kg
