50 Pack - MS21075L06 Military Standard Locking Nutplate Self - GHA-156-C0

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

visit our page Gearheadsurpluscom!!

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

New - Old stock - sold as pictured.

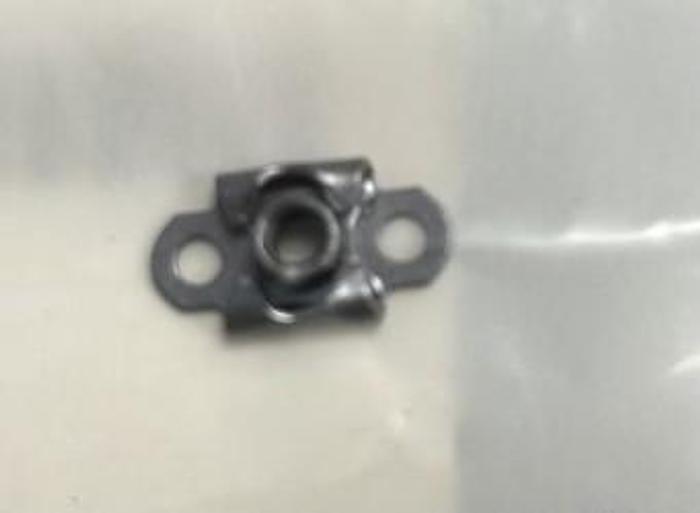

50 Pack - MS21075L06 Military Standard Locking Nutplate Self

Center To Center Distance Between Mounting Holes Along Length:

Between 0.435 inches and 0.439 inches

Distance From Aperture Center To Mounting Hole Center: Between 0.213 inches and 0.223 inches

Features Provided: Floating nut

Hardness Rating: 49.0 rockwell c

Locking Feature: Prevailing torque all metal design

Lubrication: Dry film lubricant

Material: Steel

Mounting Hole Arrangement Style: 2 holes

Mounting Hole Diameter: Between 0.098 inches and 0.103 inches

Thread Size: 0.138 inches

Nut Height: 0.171 inches

Nut Length: 0.682 inches

Nut Mounting Provision: Straight holes

Nut Style: Plate

Plate Thickness: 0.140 inches

Plate Width: Between 0.290 inches and 0.357 inches

Surface Treatment: Cadmium

Surface Treatment Specification: Cl 3 federal specification single treatment response type 2 qq-p-416

Tempurature Rating: 450.0 degrees fahrenheit

Thread Class: 3b

Thread Direction: Right-hand

Thread Qty Per Inch (tpi): 32

Thread Series: Unjc
