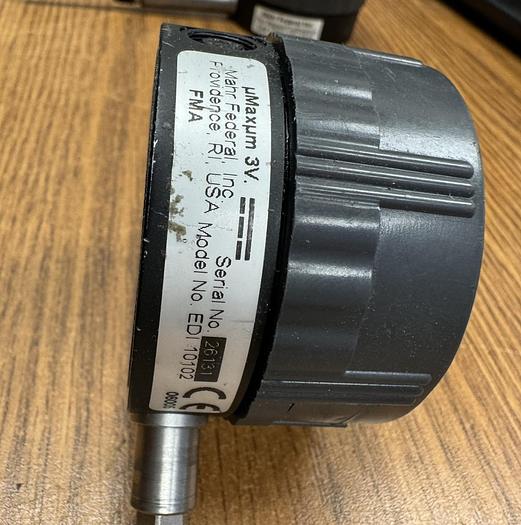

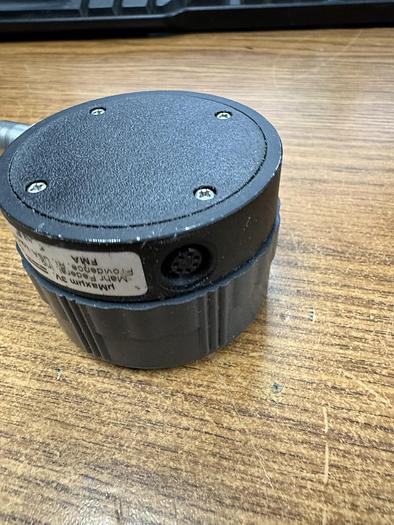

MAHR Federal UMaximum 3 Volt EDI-10102 NSNP GHA-174

*Please read full description prior to purchase*

**eBay policy restricts the display of phone numbers in the listing**

visit our page Gearheadsurpluscom!!

SELLING "AS IS - WHERE IS" AS DESCRIBED

** see all pictures**

STANDARD RESOLUTION MODEL

EDI-10102 US version 0.375in. 0.46in.

Product Features

Rotating Bezel - Allows rotation through 270° for ease of

reading.

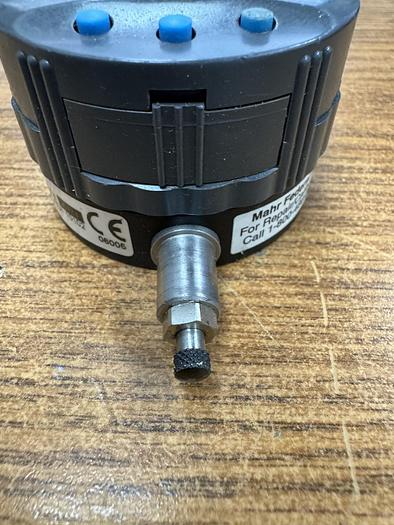

Controls - Makes use of three push buttons(inch/mm,

M/OFF, ZERO/ON).

inch/mm -Allows the selection of inch or metric display any time a reading is present.

M/OFF -Used to turn the unit "off" and for entering setup Modes. The M/OFF button must be held down for a

minimum of 2 seconds to turn the unit "off".

ZERO/ON - This button is used to turn the unit "on". When the unit is "on" the button is used to electronically set the

analog display to its mid point and set the digital display to zero or a preset value(if used).The button can also be used to place the unit into a mode which indicates the true zero position of the spindle. To enter this True Spindle Position mode, first make sure that the unit is on-scale, then press and hold

ZERO/ON for 1+ second. Once the mode is selected, the unit displays the actual position of the spindle in the Indicators measuring range and the Indicators analog display changes to the single element mode showing the position of the spindle to its range. To zero the gage, press and release ZERO/ON.

Preset Value (Mode M2) -Allows the entry of any value in the range of ± 99.99995in. (± 999.999mm) as a preset or actual number.

Switchable Inch Resolution (Mode M2) - Resolution can be selected as 0.0001 in. or 0.00005 in. on standard 50uin resolution models only.

Tolerance Limits (Mode M12 & M23) - Allows the entry of a pair of tolerance limit values in the range of t 0.07995in.(± 1.999mm).

GO/NOGO -Allows tolerance evaluation by displaying GO/ NOGO tolerance symbols in both inch or metric.

Analog Magnification (Mode M1) -Allows for a scale selection of 10%{no icon} or 50%(in.)/40%(mm){X1 icon) of digital range.

Range Signal -Notifies an "off-scale" condition when the digital range is exceeded. The digital display will turn off

and the analog left or right arrow will be left on.

POWER MANAGEMENT-The mMaxmm is designed with an auto power down feature. If it senses 15 minutes of inactivity (i.e. no spindle movement, no buttons pushed, and no data output requests), the unit will turn itself off.

Calibration Lockout (Option) -Allows the entry into the Calibration mode via a key (EKY-1024) plugged into the digital output. Calibration is inaccessible without this
